Headlamp, Removing And Installing, Halogen Headlamps (Through My 2012): Installing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:

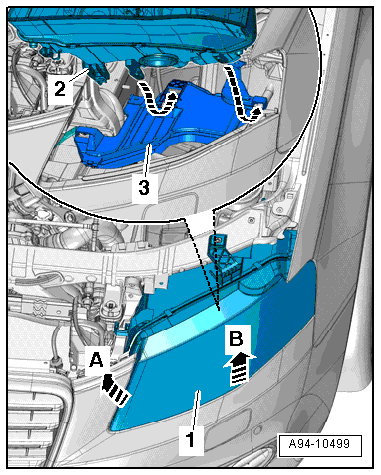

-- Position the outer edge of the headlamp housing -1- inside behind the fender.
-- Tilt the headlamp housing inward -arrow A-. The guide rails -2- on the housing must engage in the guides on the mount -3- = -arrows-.
-- Slide the headlamp housing back into the headlamp housing mount as far as the stop -arrow B-.
- The headlamp housing must slide into the mount gently without using force.
-- When sliding the headlamp -4- in, make sure the headlamp ventilation -3- slides evenly into the mount -2- for the ventilation hose -1- -arrow-.
Fig 2: Identifying Headlamp -4-, Headlamp Ventilation -3-, Mount -2- And Ventilation Hose -1- -Arrow-

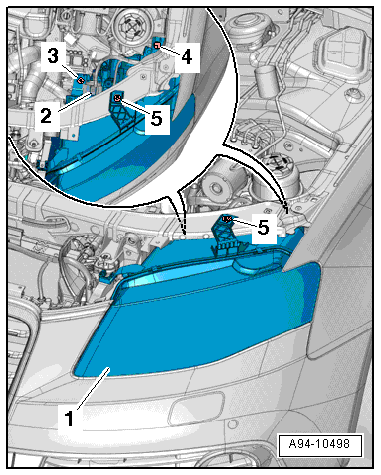

-- Tighten the bolts -3, 4 and 5-.
