Headlamp Range Control Module, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

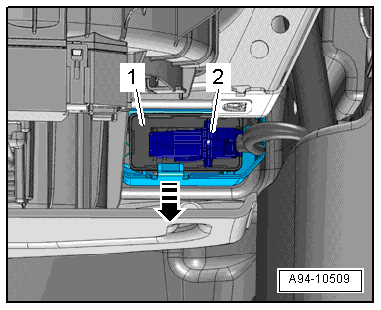

Fig 1: Identifying Headlamp Range Control, Cornering Lamp And Headlamp Range Control Modules

Courtesy of AUDI OF AMERICA, LLC

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Release the retaining clip -arrow- and remove the -1- from the retaining frame.

-- Disconnect the connector -2-.

-- To disconnect the connector, press the tab -1-, turn the retaining bracket in direction of -arrow- and remove the connector.

Fig 2: Harness Connector Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC
