Overview - Bumper Cover, Standard

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Note the following for vehicles with lane change assist.

If rear bumper is removed and re-installed or changes are made to bumper, lane change assist (Audi side assist) calibration is necessary. Refer to Lane Change Assistance .

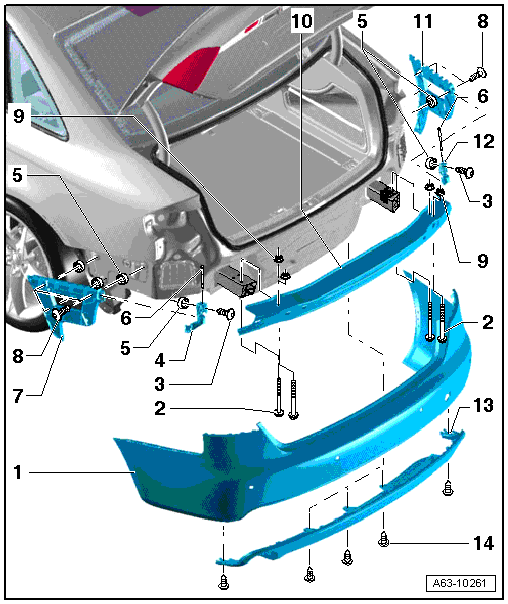

Fig 1: Overview Of Rear Bumper Cover (Standard)

Courtesy of AUDI OF AMERICA, LLC

Rear Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- 17 Nm
Bolt
- 1.5 Nm
Upper Guide Piece
- Insert into the guide piece and lock.
- Removing and installing. Refer to BUMPER GUIDES, REMOVING AND INSTALLING, STANDARD ALLROAD .
Clip
Pins
- Removing the bumper cover upward. Refer to Figure.
Left Guide Piece
- Removing and installing. Refer to BUMPER GUIDES, REMOVING AND INSTALLING, STANDARD ALLROAD .
Bolt
- 1.5 Nm
- Tightening sequence. Refer to Fig 2
Nut
- 17 Nm
Bumper Carrier
Right Guide Piece
Upper Guide Piece
- Insert into the guide piece and lock.
Spoiler
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING, STANDARD, ALLROAD .
Bolt
- 1.5 Nm

Fig 2: Guide Piece - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts to 1.5 Nm in the following sequence: -1 to 5-.
