Overview - Bumper Cover, AUDI RS 4
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Note the following for vehicles with lane change assist.
If rear bumper is removed and re-installed or changes are made to bumper, lane change assist (Audi side assist) calibration is necessary. Refer to Lane Change Assistance .

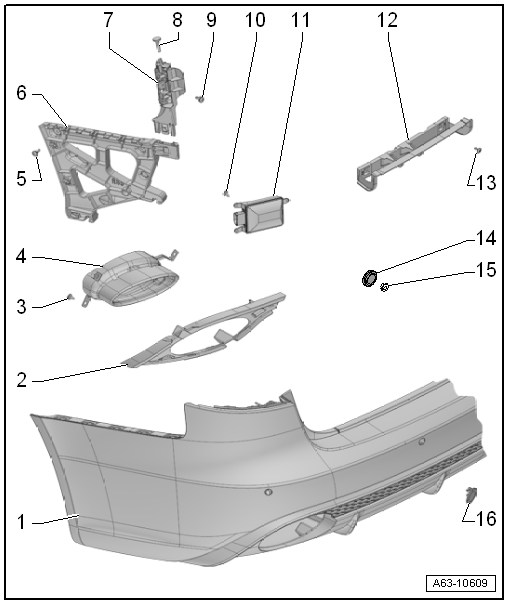

- Rear Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS 4 .
- Mount
- For the tail pipe trim
- Mounted using 8 clips
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING, AUDI RS 4 .
- Bolt
- 2 Nm
- Quantity: 4
- Tail Pipe Trim
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING, AUDI RS 4 .
- Bolt
- Quantity: 3
- Tightening sequence: 2.0 Nm
- Guide Piece
- For the bumper cover
- Removing and installing. Refer to BUMPER GUIDES, REMOVING AND INSTALLING, AUDI RS 4 .
- Upper Guide Piece
- To the bumper cover retainer
- Removing and installing. Refer to BUMPER GUIDES, REMOVING AND INSTALLING, AUDI RS 4 .
- Retainer Pin
- For the bumper cover
- Bolt
- 2 Nm
- Bolt
- 2 Nm .
- Lane Change Assistance Control Module
- Removing and installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
- Center Guide
- For the bumper cover
- Removing and installing. Refer to BUMPER GUIDES, REMOVING AND INSTALLING, AUDI RS 4 .
- Bolt
- Quantity: 2
- Tightening sequence: 2.5 Nm
- Cap
- Nut
- 4 Nm
- Cap
- For the towing eye
-- Tighten the bolts to 2.0 Nm in a -1 to 3- sequence.
-- Tighten the bolts to 2.5 Nm in the sequence -1 to 2-.
