Lateral guide Removing And Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Removing

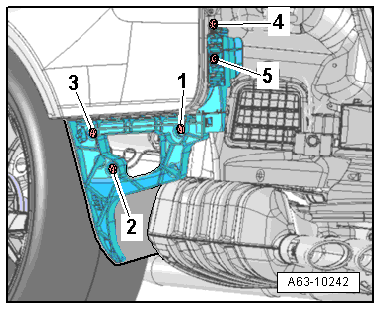

Fig 1: Identifying Guide Piece And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -1 to 3-.

-- Release the retaining spring on the bumper cover locking mechanism -arrow- and remove the bumper cover side mount -4- downward.

Installing

Tightening specification. Refer to Figure.

Install in reverse order of removal. Note the following:

-- Install the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
