Center Guide Removing And Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS 4 .

-- Remove the nuts -arrows-.

-- Remove the center guide -1-.

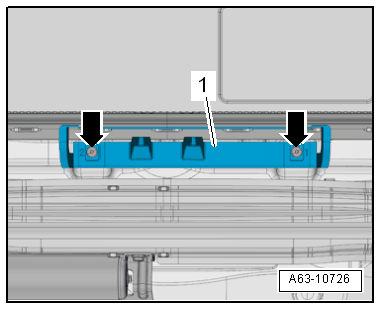

Fig 1: Identifying Center Guide And Fasteners

Courtesy of AUDI OF AMERICA, LLC

Installing

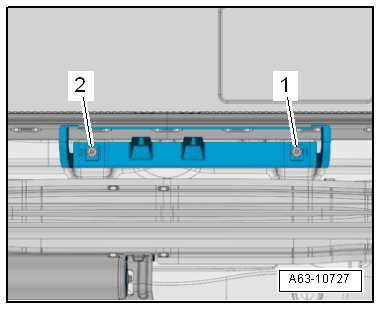

Tightening specification. Refer to Figure.

Install in reverse order of removal. Note the following:

-- Install the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS 4 .
