Bumper Cover, Removing And Installing, Standard, ALLROAD: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the tail lamp. Refer to TAIL LAMPS .

-- Disconnect the electrical connector -1- on the Parking Aid Control Module -J446- if applicable.

-- Free up the electrical wiring harness on the control module bracket -arrow- by disconnecting the cable tie -2-.

-- Press the grommet -3- outward.

Fig 1: Disconnecting Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

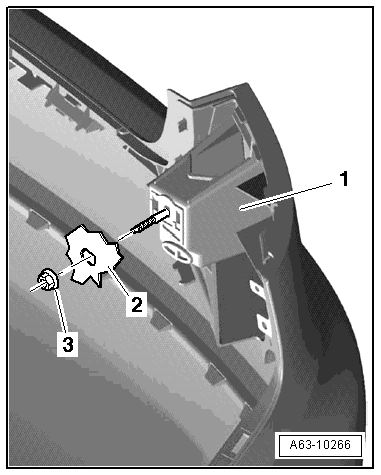

-- Remove the nut -3- from the threaded pin on the cover -1-.

Fig 2: Identifying Nut From Threaded Pin On Cover

Courtesy of AUDI OF AMERICA, LLC

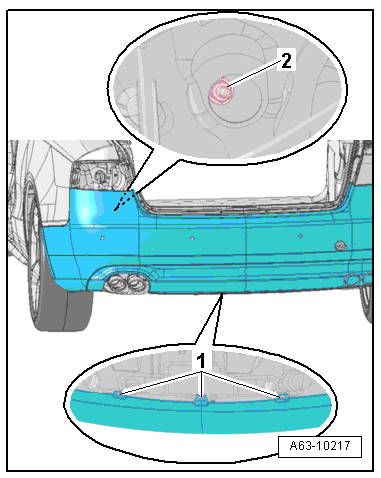

-- Remove the bolts -1- on the lower bumper cover section.

Fig 3: Identifying Bolts On Lower Bumper Cover Section

Courtesy of AUDI OF AMERICA, LLC

Fig 4: Guide Piece Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Before the bumper cover can be pulled to the rear, remove the pin -1- upward from the left and right guide piece -3-.

-- When installing, fold the hinge -2- on the upper guide piece forward in direction of -arrow- before inserting the pin.

-- Remove the left and right bolts -1- on the front side of the bumper.

-- Release the catch for the bumper cover by removing the bolts -3- from the guide piece.

Fig 5: Releasing Catch For Bumper Cover By Removing Bolts

Courtesy of AUDI OF AMERICA, LLC

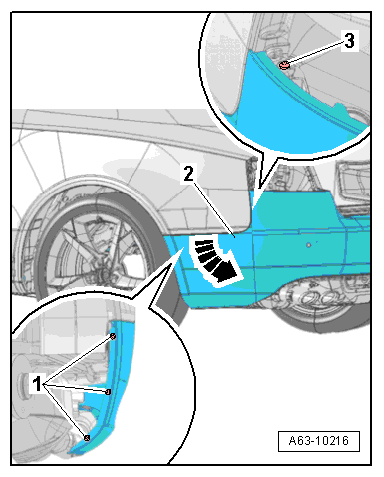

-- Disengage the left and right bumper cover on the side panel in direction of -arrow-.

-- Remove the bumper cover -2-. The parking aid sensor electrical wire must be guided out through the body opening.
