Bumper Cover, Removing And Installing, Standard, ALLROAD: Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

3 Nm
Install in reverse order of removal. Note the following:

-- When installing, the side catches on the guide piece -2- must engage completely into the bumper cover -1-

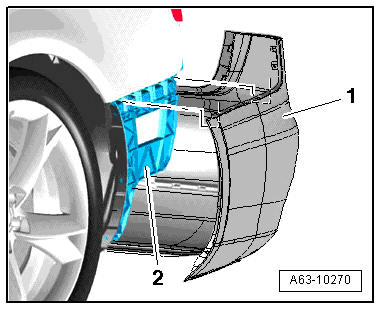

Fig 1: Identifying Side Catches On Guide Piece (Engage Completely Into Bumper Cover)

Courtesy of AUDI OF AMERICA, LLC

-- Fold the hinge on the guide piece forward and insert the bolt. Refer to Figure

-- If equipped, connect the electrical connector on the Parking Aid Control Module -J446-. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP CONTROL MODULE -J860- / -J861-, REMOVING AND INSTALLING (HID HEADLAMPS FROM MY 2013) .

-- Install the tail lamp. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP CONTROL MODULE -J860- / -J861-, REMOVING AND INSTALLING (HID HEADLAMPS FROM MY 2013) .
