Bumper Cover, Removing And Installing, AUDI RS 4: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

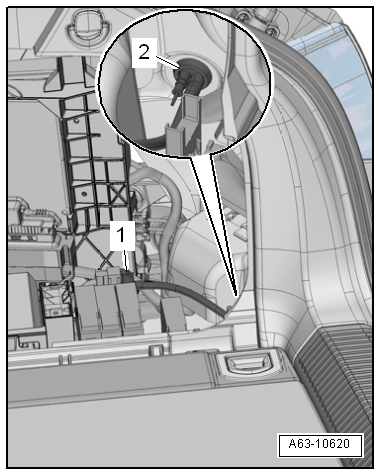

Fig 1: Identifying Central Connector -1- And Grommet -2-

GWWA63-10620

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail lamps. Refer to TAIL LAMPS .

-- Disconnect the central connector -1-.

-- Press the grommet -2- outward.

-- Remove the cover.

Fig 2: Identifying Bolts On Lower Bumper Cover Section

GWWA63-10217

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2-.

-- Remove the bolts -1- on the lower bumper cover section.

-- Remove the bolts -arrows- and press the wheel housing liner -1- to the side.

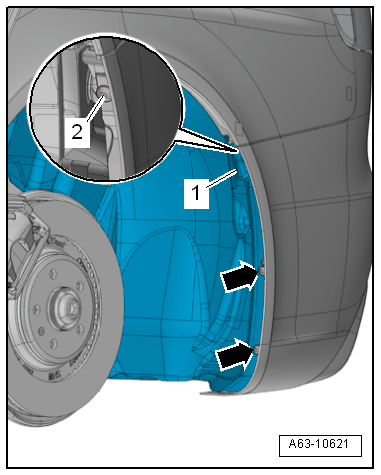

Fig 3: Identifying Wheel Housing Liner Fasteners

GWWA63-10621

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Remove the retaining pin -2- upward in direction of -arrow A-.

-- Remove the left and right bumper cover side pieces on the side panel in direction of -arrow B-.

-- Remove the bumper cover -1-. When doing this, the wiring harness must also be guided out from the vehicle body pass through.

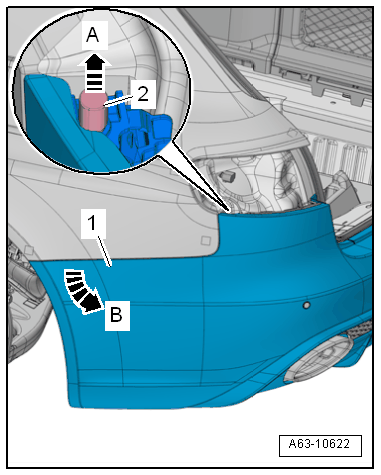

Fig 4: Removing Bumper Cover -1-

GWWA63-10622

Courtesy of AUDI OF AMERICA, LLC
