Overview - Bumper Cover, Standard

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

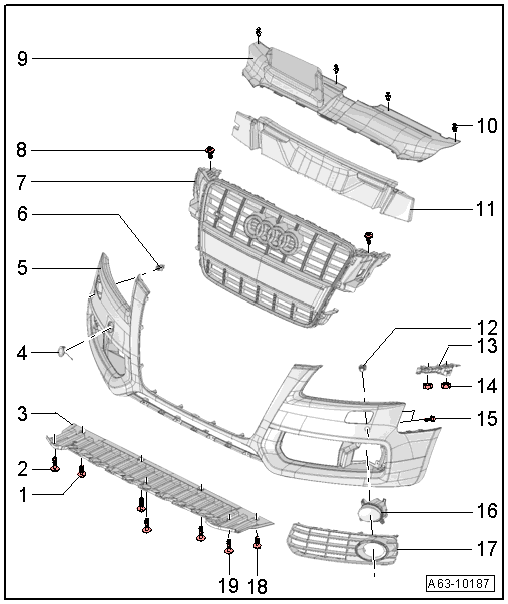

Fig 1: Overview Of Front Bumper Cover (Standard)

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 3 Nm
Bolt
- 1.5 Nm
Bumper Cover End Plate
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Cover
- for the towing hook
Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Right Front Parking Aid Sensor -G252-
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
Radiator Grille
- Removing and installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING, EXCEPT AUDI RS 4 .
Bolt
- Tightening specification: 1.5 Nm
Lock Carrier Cover
- Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Expanding Rivet
- Remove the clamping pin when removing.
- Only press the clamping pin in when installing.
Impact Absorber
- Removing and installing. Refer to IMPACT ABSORBER, REMOVING AND INSTALLING, STANDARD, ALLROAD .
Left Front Parking Aid Sensor -G255-
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
Front Bumper Cover Mount
- Removing and installing. Refer to BUMPER GUIDES, REMOVING AND INSTALLING .
Bolt
- 4 Nm
Nut
- 4 Nm
Fog Lamp
- Removing and Installing. Refer to FOG LAMP, REMOVING AND INSTALLING .
Air Intake Grille
- Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, STANDARD .
Bolt
- 3 Nm
Bolt
- 1.5 Nm

Fig 2: Front Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the following order to 4 Nm -2, 3, 5, 1-.
