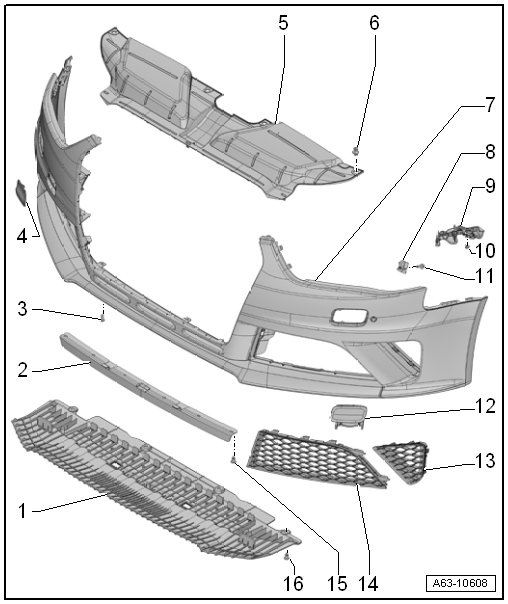

Overview - Bumper Cover, AUDI RS 4
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Front Bumper Cover End Plate
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
- Spoiler Lip
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 3
- Cover
- For the towing hook
- Lock Carrier Cover
- Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 4
- Front Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS 4 .
- Nut
- Slid into the bumper cover
- Front Bumper Cover Mount
- Removing and installing. Refer to BUMPER GUIDES, REMOVING AND INSTALLING .
- Nut
- Quantity: 3
- Tightening specification: 4 Nm.
- Bolt
- 4 Nm
- Cover
- For headlamp washer system spray nozzle
- Outer Air Intake Grille
- Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS 4 .
- Inner Air Intake Grille
- Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS 4 .
- Expanding Rivet
- Quantity: 6
- Bolt
- 5 Nm
- Quantity: 4
