Overview - Bumper Cover, ALLROAD: Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Only the differences from the standard bumper are described

The removal and installation of the bumper cover is performed like that of the standard bumper.

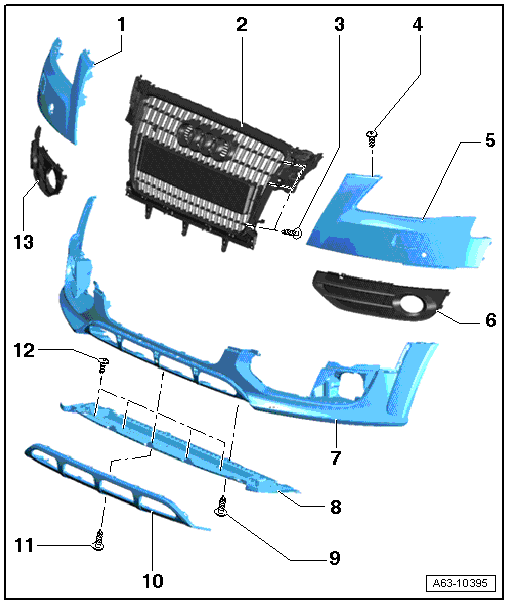

Fig 1: Overview Of Front Bumper Cover (Allroad)

Courtesy of AUDI OF AMERICA, LLC

Right Bumper Cover

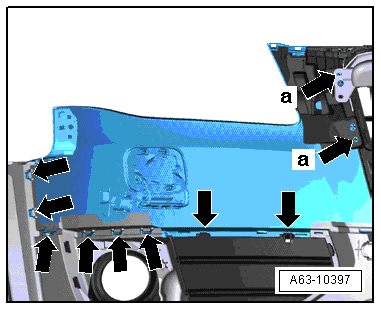

- Removing. Refer to "Remove the Left and Right Bumper Cover" (See Figure).
Radiator Grille
- Removing and installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING, EXCEPT AUDI RS 4 .

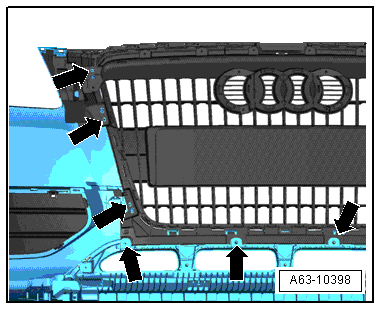

- Loosen the bolts. Refer to "Loosen the Radiator Grille". (See Figure).
Bolt
- 1.5 Nm
Bolt
- 4 Nm
Left Bumper Cover
- Removing. Refer to "Remove the Left and Right Bumper Cover" (See Figure).
Left Air Intake Grille
- Removing AIR INTAKE GRILLE, REMOVING AND INSTALLING, ALLROAD
Front Spoiler

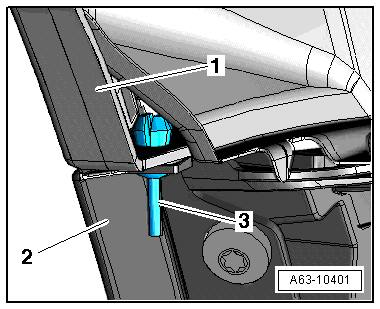

- Unlike for standard bumpers, the two left and right expanding clips must be removed first, before the front spoiler can be removed. Refer to "Expanding Clip for Front Spoiler" (See Figure).
End Plate
- Bumper cover removed. Refer to BUMPER COVER, REMOVING AND INSTALLING .
  -- Remove the bolts -12- and remove the end plate from the impact guard toward the rear.
Bolt
- 1.5 Nm
Impact Guard
- Bumper cover removed
- Remove bolts -12- and bolt -11- and remove impact guard from the front spoiler and end plate toward the front.
Bolt
- 1.5 Nm
Bolt
- 1.5 Nm
Right Air Intake Grille
- Removing AIR INTAKE GRILLE, REMOVING AND INSTALLING, ALLROAD
