Bumper Cover, Removing And Installing, Standard, ALLROAD: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

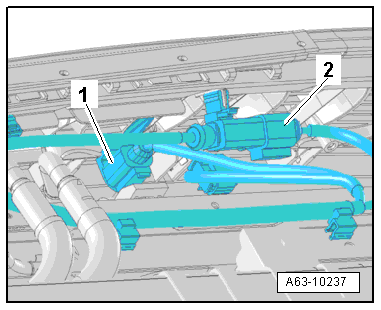

Fig 1: Identifying Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Disconnect the electrical connector -2- for the Outside Air Temperature Sensor -G17- and the electrical connector -1- for the front parking aid sensor.

NOTE:

Additional connectors may need to be disconnected, depending on vehicle equipment.

-- Remove the bolt -3-.

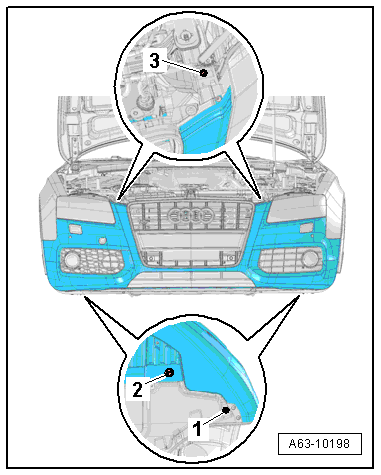

Fig 2: Identifying Bolt And Quick-Release Coupling Front Bumper Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and the quick-release coupling -1- on the front bumper noise insulation.

-- Remove the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the electrical connector -1- on the fog lamp.

-- Remove the bolts -arrows-.

NOTE:

Only the upper bolt is installed from MY 2013.

-- Disengage the side walls on the front side panel and remove the bumper cover forward.

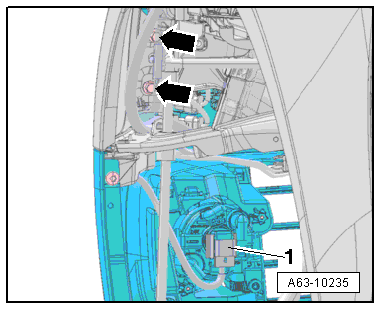

Fig 3: Identifying Bolts Of Front Bumper Side Walls And Fog Lamp Connector

Courtesy of AUDI OF AMERICA, LLC
