Bumper Cover, Removing And Installing, AUDI RS 4: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Front Noise Insulation And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

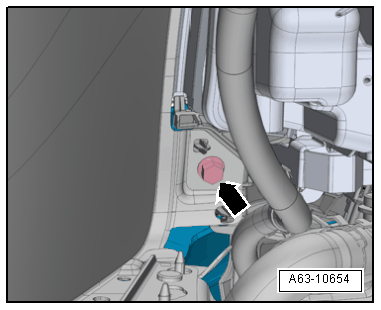

Fig 2: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-.

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -1- for the front parking aid sensor.

-- In equipped, remove the Garage Door Opener Control Module - J530- -item 2-. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

Fig 3: Identifying Front Parking Aid Sensor Connector -1-

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the side walls on the front side panel and remove the bumper cover forward.
