Outer Air Intake Grille Removing And Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Removing

NOTE:

If the air intake grille cannot be removed in the described manner, the front bumper cover must be removed. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS 4 .

-- Pull air intake grille -1- off of the bumper cover in direction of -arrow- and remove it.

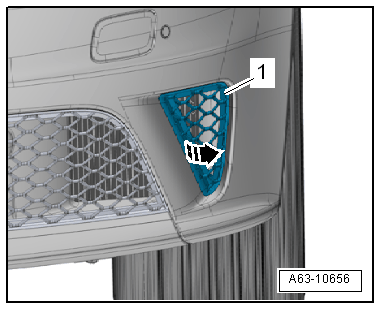

Fig 1: Removing Air Intake Grille -1-

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order of removal. Note the following:

-- The retaining tabs must engage completely in the bumper.
