Air Intake Grille, Removing And Installing, ALLROAD: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Slide a small screwdriver in the opening on the air intake grille as shown.

-- Release the lock on the air intake grille in the direction of the arrow and remove toward the front.

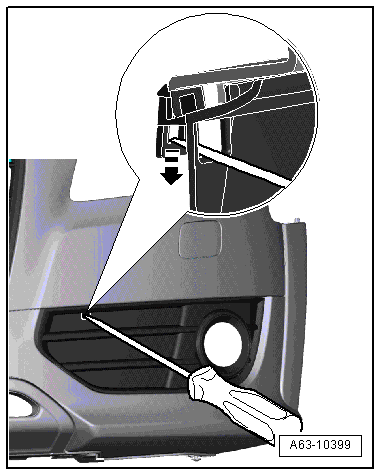

Fig 1: Inserting A Small Screwdriver Into Opening On Air Intake Grille As Illustrated
GWWA63-10399Courtesy of AUDI OF AMERICA, LLC
