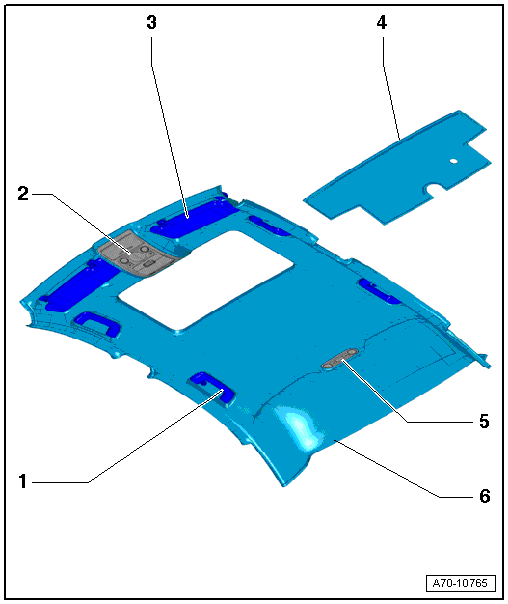

Component Location Overview - Roof Trim Panel (Sedan)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Roof Grab Handle
- Removing and installing. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
- Interior/Front Reading Lamp
- Removing and installing. Refer to Front Interior Lamp -W1- /Front Passenger Reading Lamp -W13- /Driver Reading Lamp -W19-, REPLACING .
- Sun Visor
- Overview. Refer to OVERVIEW - SUN VISORS .
- Roof Reinforcement
- Equipment levels
- Mounting: Refer to ROOF REINFORCEMENT, ATTACHING TO BODY, VERSIONS WITHOUT SUNROOF (SEDAN) for vehicles without a sunroof and refer to ROOF REINFORCEMENT, ATTACHING TO BODY, VERSIONS WITH SUNROOF (SEDAN) for vehicles with a sunroof
- Interior Light/Rear Reading Light
- Removing and installing. Refer to Front Interior Lamp -W1- /Front Passenger Reading Lamp -W13- /Driver Reading Lamp -W19-, REPLACING .
- Headliner
Vehicles with:
- without a sunroof
- with sunroof
- Overview. Refer to OVERVIEW - HEADLINER (SEDAN) .CAUTION:
- The headliner bends easily.
- Replace the headliner if it is bent.
