Window Frame Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Lower the door window.
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Vehicles equipped with sun shade: remove the sun shade mount. Refer to SUN SHADE MOUNT, REMOVING AND INSTALLING .

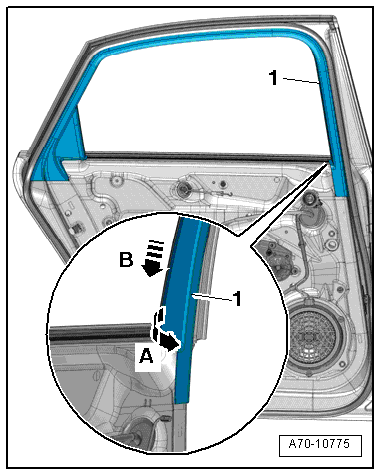

-- Pry the window frame trim panel -1- out using the Trim Removal Wedge 3409 starting carefully at the bottom of the B-pillar and then all around the window frame seal -arrow A-.
-- Remove the window frame trim downward from the window frame -arrow B- at the same time.
