Rear Pull Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

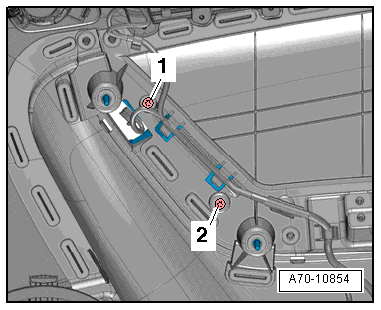

Fig 1: Removing Rear Pull Handle Bolts -1- And -2

Courtesy of AUDI OF AMERICA, LLC

-- Remove the door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the armrest. Refer to REAR ARMREST, REMOVING AND INSTALLING .

-- Remove the bolts -1- and -2-.

-- Remove the pull handle -1- from the door panel.

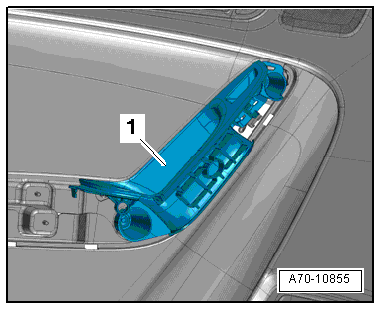

Fig 2: Removing Pull Handle -1- From Rear Door Panel

Courtesy of AUDI OF AMERICA, LLC
