Rear Armrest, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

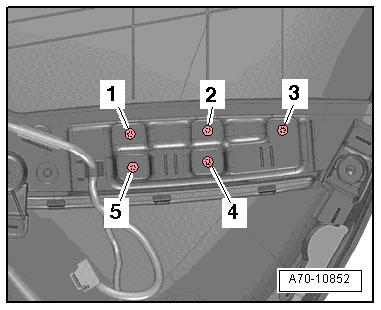

Fig 1: Removing Rear Door Armrest

Courtesy of AUDI OF AMERICA, LLC

-- Remove the door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the bolts -1 to 5-.

-- Remove the armrest -1- from the door panel.

Fig 2: Removing Rear Armrest From Door Trim

Courtesy of AUDI OF AMERICA, LLC
