Overview - Rear Door Trim Panel

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The rear left door panel is illustrated.

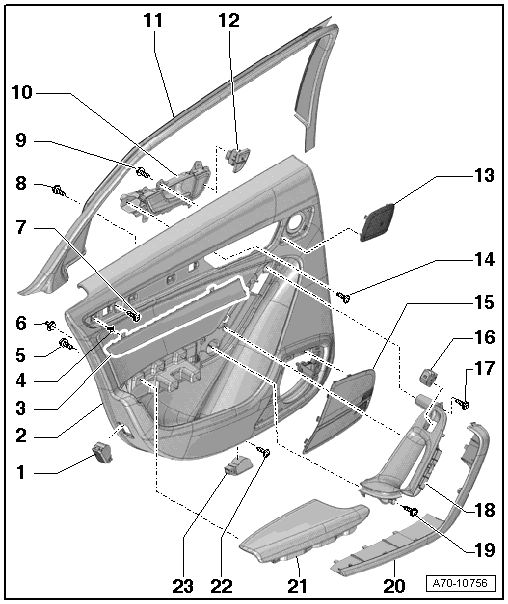

Fig 1: Overview Of Rear Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Active or Passive Rear Reflector
- Equipment levels
Rear Door Trim Panel
- Removing and installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
Trim Molding
- For door trim
- Removing and installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
Clip
- For trim panel
- Quantity: 3
Bolt
- 1.2 Nm
- For armrest
- Quantity: 5
Clip
- Quantity: 6
Bolt
- 2.5 Nm
- For door trim
Bolt
- 1.2 Nm
- For pull handle
- Quantity: 2
Bolt
- 1.2 Nm
- For inside door release mechanism
- Quantity: 6
Interior Door Mechanism
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Trim Panel
- For the window frame
- Removing and installing. Refer to WINDOW FRAME TRIM, REMOVING AND INSTALLING .
Rear Interior Locking Button
- Equipment levels
- Driver side: Left Rear Interior Locking Button -E310-
- Passenger side: Right Rear Interior Locking Button -E311-
- Removing and Installing. Refer to LEFT/RIGHT REAR INTERIOR LOCKING SWITCH -E273- / -E274-, REMOVING AND INSTALLING .
Trim
- For high range speaker
- Removing and installing. Refer to TREBLE SPEAKER TRIM, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- For door trim
Speaker Trim
- For midrange speaker
- Removing and installing. Refer to MIDRANGE SPEAKER TRIM, REMOVING AND INSTALLING .
Power Window Switch in the Rear Door
- Driver side: Left Rear Power Window Switch in Left Rear Door -E52-
- Passenger side: Right Rear Window Switch in Right Rear Door -E54-
- Removing and Installing. Refer to Left Rear Power Window Switch in Left Rear Door -E52- /Right Rear Window Switch in Right Rear Door -E54-, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- For door trim
Pull Handle
- Removing and installing. Refer to REAR PULL HANDLE, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- For door trim
Trim
- For armrest
- Removing and installing. Refer to REAR ARMREST TRIM, REMOVING AND INSTALLING .
Armrest
- Removing and installing. Refer to REAR ARMREST, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- For door trim
Entry Lamp
- Equipment levels
- Removing and installing. Refer to [For engine(s) CCBA, CGXC, CTUB, CAED, CAEB, CALA, CPMB, CPMA] Lamps .
