Sill Panel Strip, Removing And Installing, Front Sill Panel: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
-- Remove the A-pillar gap cover. Refer to A-PILLAR GAP COVER, REMOVING AND INSTALLING .
Driver side:
-- Remove the cable operating lever HOOD RELEASE LEVER, REMOVING AND INSTALLING .

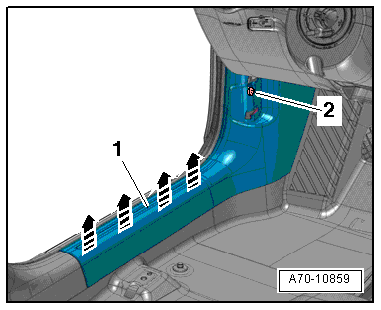

-- Remove the front sill panel trim screw -2-.
Procedure for both sides of vehicle:
-- Unclip the front sill panel strip -1- from the sill panel beginning at the front using the Trim Removal Wedge 3409 -arrows-.
-- Pull the front sill panel trim toward the rear and out of the footrest.
-- Disengage the front sill panel trim on the operating lever mount and remove it.
