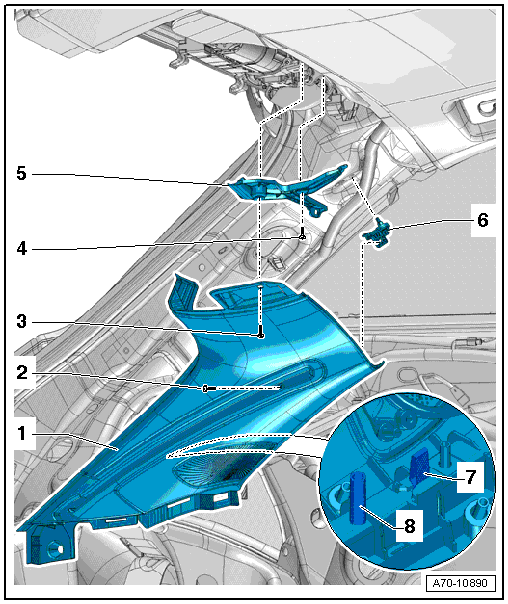

Overview - D-Pillar Trim Panel (AVANT)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- D-Pillar Trim Panel
- Removing and installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING (AVANT) .
- Bolt
- 2 Nm
- Bolt
- 2 Nm
- Bolt
- 3 Nm
- Rear Mount for the D-Pillar Trim Piece
- Removing and installing. Refer to D-PILLAR TRIM PANEL BRACKET, REMOVING AND INSTALLING, REAR BRACKET .
- Front Mount for the D-Pillar Trim Piece
- Removing and installing. Refer to D-PILLAR TRIM PANEL BRACKET, REMOVING AND INSTALLING, FRONT BRACKET .
- Clip
- Insert in the trim panel
- Replace if damaged or deformed
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool T40280.
- Centering Pins
