Foot Rest, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The footrest will get damaged during removal and must be replaced.
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Remove the front driver side sill panel trim. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING, FRONT SILL PANEL .

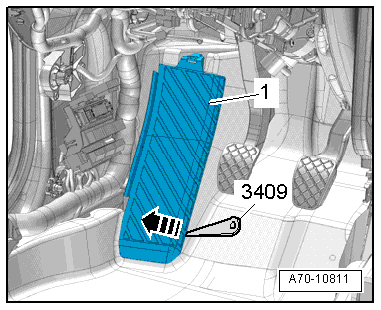

-- Unclip the foot rest -1- using the Trim Removal Wedge 3409 -arrow- and remove.
