D-Pillar Trim Panel Bracket, Removing And Installing, Front Bracket: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

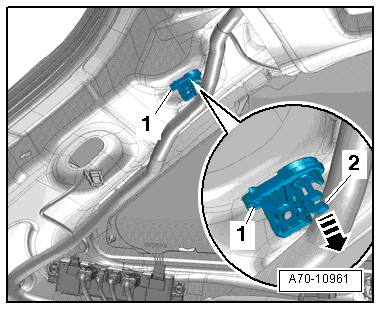

Fig 1: Removing D-Pillar Front Trim Bracket
GWWA70-10961Courtesy of AUDI OF AMERICA, LLC

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING (AVANT) .

-- Remove the screw -2- using a screwdriver -arrow-.

-- Unclip the bracket -1- from the body and remove it.
