C-Pillar-Trim Panel, Removing And Installing (Sedan): Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .
-- Remove the rear outer belt guide. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING (SEDAN) .
-- Remove the rear grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
CAUTION:
- The headliner must be pressed to the side slightly during the following steps. Do this very carefully because the headliner can be creased easily.
- Replace the headliner if it is bent.

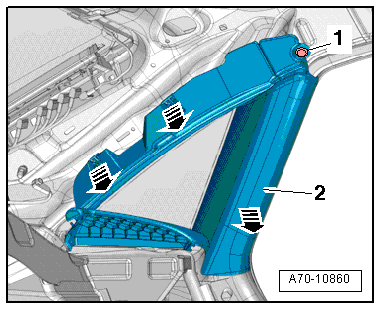

-- Remove the expanding clip -1- with the Pry Lever 80-200.
-- Use the Pry Lever 80-200 to unclip the C-pillar trim panel -item 2- -arrows- and carefully remove it.
