Rear Lid Lock Trim Panel, Removing And Installing (AVANT): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

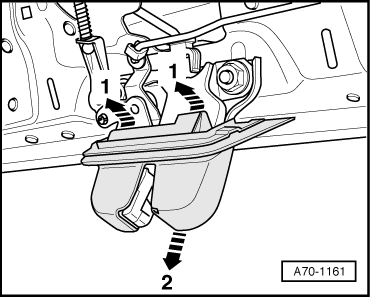

Fig 1: Removing/Installing Rear Lid Lock Trim Panel (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower rear lid trim panel. Refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING (AVANT) .

-- Release the trim retaining hooks -arrows 1-.

-- Remove the trim panel from the rear lid lock -arrow 2-.
