Luggage Compartment Side Trim Panel, Removing And Installing (Sedan): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

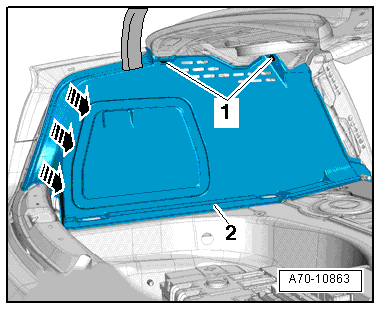

Fig 1: Removing Luggage Compartment Side Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Omega Clip Tool T40280 is needed to remove any clips that are still in the body mounting points.

Fig 2: Identifying Removal Tool T40280

Courtesy of AUDI OF AMERICA, LLC

-- Versions with rear side airbag: remove the rear side airbag. Refer to REAR SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- For vehicles with a fixed rear seat backrest: remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .

-- Remove the luggage compartment liner. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING (SEDAN) .

-- Remove the rear cross panel trim. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING (SEDAN) .

-- Remove the tie-down. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Remove the expanding clips -1- with the Pry Lever 80-200.

-- Pry the luggage compartment side trim panel -2- out of the body -arrows- using the Pry Lever 80-200.

-- Disengage the luggage compartment side trim at the hinges and remove it.
