Luggage Compartment Side Trim Panel, Removing And Installing (AVANT): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the screen separator.

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Versions with rear side airbag: remove the rear side airbag. Refer to REAR SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

-- Remove the rear cross panel trim. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING (AVANT) .

-- Remove the gap cover. Refer to GAP COVER, REMOVING AND INSTALLING .

-- Versions with retaining track: remove the retaining track. Refer to RAIL, REMOVING AND INSTALLING .

-- Remove the front luggage compartment floor panel (vehicle tool box). Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING, FRONT LUGGAGE COMPARTMENT FLOOR (AVANT) .

-- Remove the coat hook. Refer to COAT HOOK, REMOVING AND INSTALLING (AVANT) .

-- Remove the cover for the luggage compartment side panel.

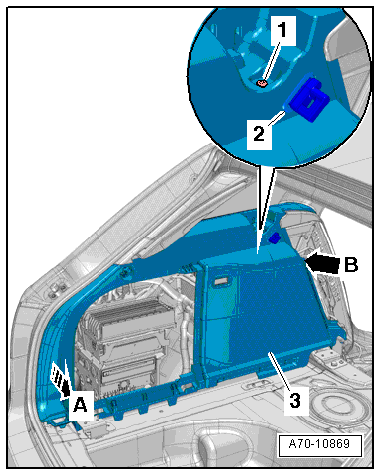

Fig 1: Removing Luggage Compartment Side Trim Panel (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- If equipped, remove the rubber grommet -2- from the partition net bracket.

-- Pry the luggage compartment side trim panel -3- out of the body -arrow A- using the Pry Lever 80-200.

-- First disengage the luggage compartment side trim from the retaining bracket -arrow B- and then remove the D-pillar and C-pillar trim.
