Lock Carrier Trim Panel, Removing And Installing (AVANT): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

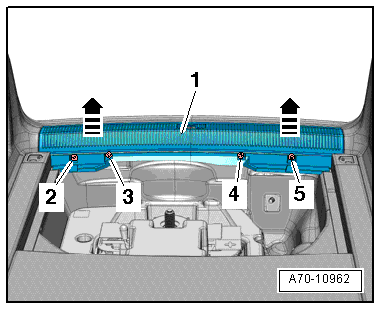

Fig 1: Removing Rear Cross Panel Trim
GWWA70-10962Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear luggage compartment floor.

-- Remove the bolts -2 to 5-.

-- Unclip the rear lid end trim panel -1- using the Pry Lever 80-200 diagonally upward -arrows-.
