Gap Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

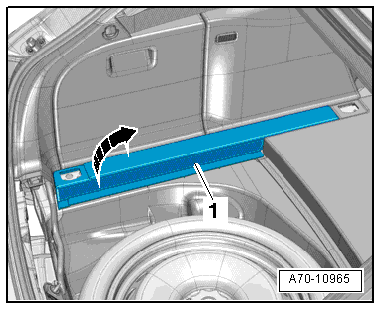

Fig 1: Removing Gap Cover
GWWA70-10965Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear cross panel trim. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING (AVANT) .

-- Remove the rear tie-down. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Remove the gap cover -1- -arrow-.
