Speaker Trim, Removing And Installing, Center Speaker: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Be very careful when removing and installing the speaker trim -1- because the speaker trim clips -1- can easily break.

When removing the speaker trim -1-. lay a cloth -3- between the instrument panel and the Trim Removal Wedge 3409 -2- to protect the instrument panel.

CAUTION:

When removing speaker trim -1- do not pull it up high, otherwise the front retaining pins will break off.

-- Begin removing the speaker trim -1- with the Trim Removal Wedge 3409 -2- starting at the right rear curve.

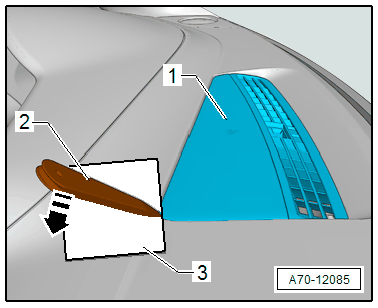

Fig 1: Removing Center Speaker Trim Starting At Right Rear Curve

Courtesy of AUDI OF AMERICA, LLC

-- Then release the speaker trim -1- with the Trim Removal Wedge 3409 -2- to the left. Do not lift the speaker trim -1- more than -a- = 3 cm when doing this.

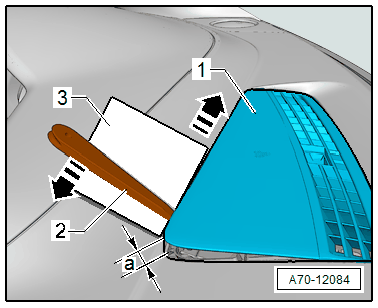

Fig 2: Removing Center Speaker Trim Starting At Right Rear Curve And Moving Left

Courtesy of AUDI OF AMERICA, LLC

-- When the back of the speaker trim -1- is released, lift it up, pull it toward the back and remove it upward.
