Radio/Navigation System Frame, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

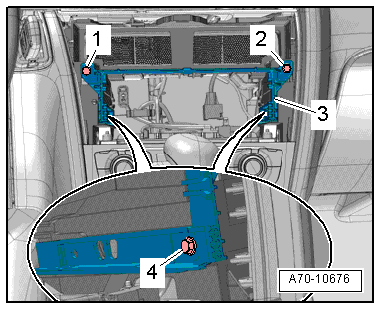

Fig 1: Removing Radio And Navigation System Frame
GWWA70-10676Courtesy of AUDI OF AMERICA, LLC

-- Remove the center instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, CENTER INSTRUMENT PANEL VENT .

-- Remove the radio/navigation system. Refer to NAVIGATION SYSTEM .

-- Remove the bolts -1- and -2- on the front of the installation frame.

-- Remove the side bolts -4-.

-- Pull the installation frame -3- back and remove it.
