MMI Screen Cover, Removing And Installing, Through My 2011: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

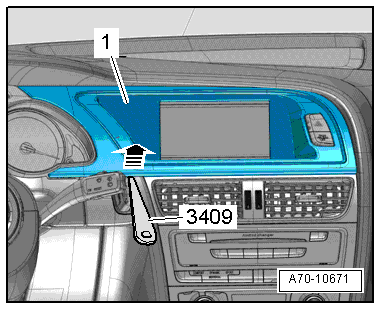

Fig 1: Prying MMI Screen Cover -1- Out
GWWA70-10671Courtesy of AUDI OF AMERICA, LLC

-- Pry the MMI screen cover -1- out at the corners -arrow- using the Trim Removal Wedge 3409 and remove it.

-- Disconnect the Front Passenger Airbag -Disabled- Indicator Lamp -K145- /Emergency Flasher Button -E229- connector and remove the cover.
