MMI Screen Cover, Removing And Installing, From My 2012: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

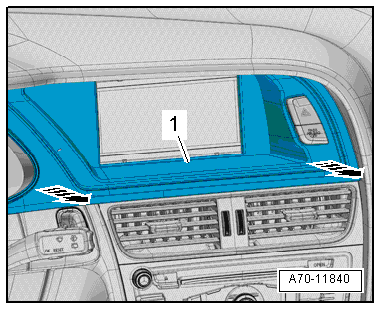

Fig 1: Removing MMI Screen Cover (From MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Move the steering wheel as far down as possible.

-- Unclip the MMI screen cover -1- from the bottom of the instrument panel -arrows- using the Wedge Set T10383.

-- Unclip the MMI screen cover -1- carefully from the bottom of the instrument cluster -arrow- using the Wedge Set T10383.

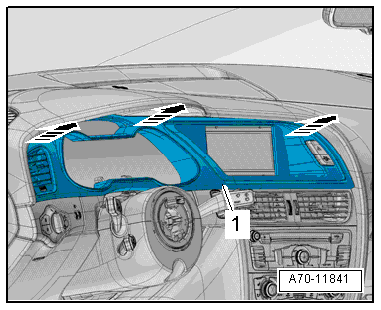

Fig 2: Unclip MMI Screen Cover -1- From Bottom Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the MMI screen cover -1- from the bottom of the instrument panel -arrow B- using the Wedge Set T10383.

Fig 3: Removing Vent Using Hook T40207

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The vent has a hole on both sides for attaching the hook T40207.

-- Carefully insert the Hook Tool T40207 between the slats and hook it into the side of the vent.

-- Disengage the vents on the sides -arrow A-.

-- Carefully unclip the top of the MMI screen cover -1- from the instrument panel -arrows-.

Fig 4: Unclip Top Of MMI Screen Cover

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector on the instrument panel vent.

-- Disconnect the Front Passenger Airbag -Disabled- Indicator Lamp -K145- /Emergency Flasher Button -E229- connector and remove the MMI screen cover.
