Light Switch Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

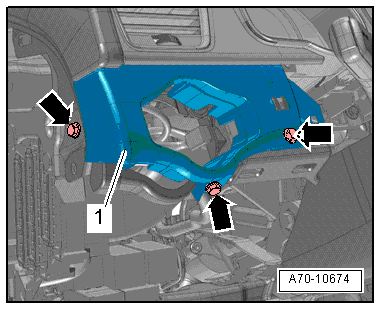

Fig 1: Removing Headlamp Light Switch Trim

GWWA70-10674

Courtesy of AUDI OF AMERICA, LLC

-- Remove the side cover from the instrument panel on the driver side. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- From MY 2012: Remove the MMI screen cover. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING, FROM MY 2012 .

-- Unclip the instrument cluster gap cover from the instrument panel. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Remove the light switch. Refer to 96 INTERIOR LIGHTS, SWITCHES .

-- Versions with headlamp range control: Remove the Headlamp Range Control Adjuster -E102-. Refer to Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the light switch trim -1-.
