Instrument Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far down as possible.

-- Move the seat all the way back and adjust the backrests to a 45° angle.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Follow the allocation of the airbag to the instrument panel.

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .

-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .

-- Remove the steering wheel. Refer to STEERING WHEEL .

-- Remove the instrument cluster gap cover. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Disconnect the light switch connector. Refer to 96 INTERIOR LIGHTS, SWITCHES .

-- Versions with headlamp range control: Disconnect the Headlamp Range Control Adjuster -E102- connector. Refer to Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING .

-- Remove the side instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, SIDE INSTRUMENT PANEL VENT .

-- Remove the MMI screen cover:

-- Remove the MMI screen. Refer to Front Information Display Control Head Control Module -J523-, REMOVING AND INSTALLING, MMI BASIC .

-- Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .

-- Disconnect the connector to the Access/Start Authorization Switch. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .

-- Remove the center instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, CENTER INSTRUMENT PANEL VENT .

-- Remove the radio/navigation system. Refer to Radio Components, USA .

-- Remove the Climatronic Control Module -J255-. Refer to Coolant Shut-Off Valve -N82- /Climatronic Coolant Shut-Off Valve -N422- LOCATION, ACTIVATION AND FUNCTION .

-- Remove the Front Information Display Control Head Control Module -J523-. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE, REMOVING AND INSTALLING .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connectors for the front passenger airbag. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .

-- Versions with speaker: Remove the center mid-treble speaker from the instrument panel. LEFT/RIGHT REAR TREBLE SPEAKER -R14 - / -R16 -, REMOVING AND INSTALLING .

-- Remove the Sunlight Photo Sensor -G107-. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .

-- Versions with speaker: Remove the center mid-treble speaker from the instrument panel. Refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14 - / -R16 -, REMOVING AND INSTALLING .

-- Remove the upper A-pillar trim panels. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove glove compartment bracket. Refer to GLOVE COMPARTMENT BRACKET, REMOVING AND INSTALLING .

-- Remove the brace from the instrument panel.

-- Remove the top left and right instrument panel bolts -1- in the A-pillar area.

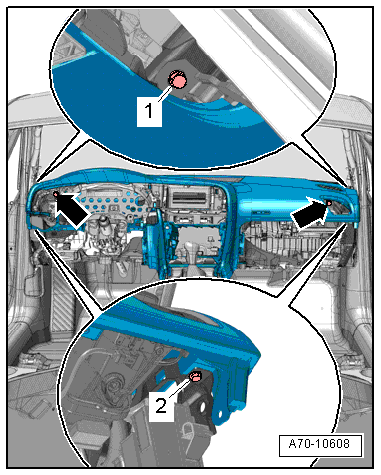

Fig 1: Identifying Left & Right Instrument Panel Bolts -1- In A-Pillar Area

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bottom left and right instrument panel bolts -2-.

-- Remove the left and right air duct bolts -arrows- on the instrument panel.

-- Remove the instrument panel bolts -1- on the center of the instrument panel central tube.

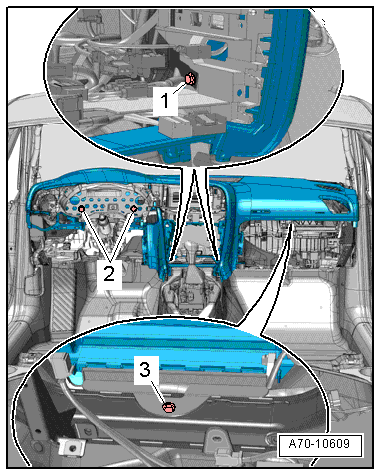

Fig 2: Removing Instrument Panel Bolts On Central Tube

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel bolts -2- on the right of the instrument panel central tube.

-- Remove the instrument panel bolt -3- on the left of the instrument panel central tube.

NOTE:

Two technicians are needed to remove the instrument panel.

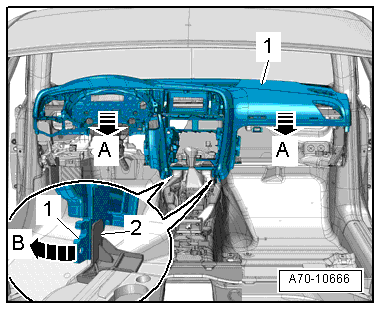

Fig 3: Carefully Pull Instrument Panel -1- Back From Instrument Panel Central Tube

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the instrument panel -1- back from the instrument panel central tube -A arrows-.

-- Disengage the bottom of the instrument panel on the bracket -2- -arrow B- at the same time.

-- Remove the instrument panel from the vehicle interior and lay it on a soft surface.
