Instrument Panel Vent, Removing And Installing, Side Instrument Panel Vent: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Instrument Panel Vent Using Hook 3438

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The instrument panel vent has a hole on both sides for attaching the T-Handle Hook 3438.

-- Alternating between the sides, carefully remove the instrument panel vent -1- from the installation opening using the T-Handle Hook 3438.

-- Vehicles with illumination: Disconnect the connector on the instrument panel vent.

From MY 2012:

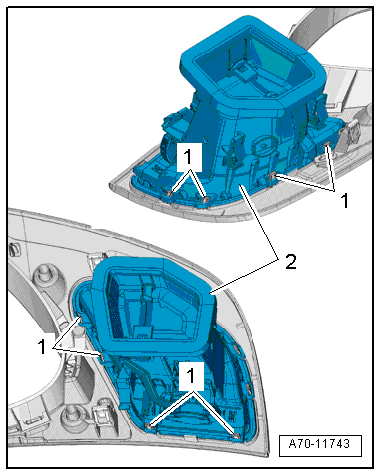

Fig 2: Removing Instrument Panel Vent -2- Carefully From Tabs -1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the MMI screen cover. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING, FROM MY 2012 .

-- Remove the instrument panel vent -2- carefully from the tabs -1-.
