Instrument Panel Side Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

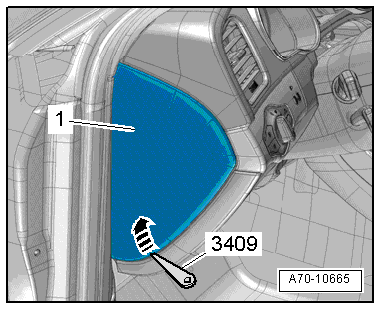

Fig 1: Removing Instrument Panel Side Cover
GWWA70-10665Courtesy of AUDI OF AMERICA, LLC

-- Pry the instrument panel side cover -1- off using the Trim Removal Wedge 3409 -arrow- and remove it.
