Instrument Cluster Frame, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .
-- Remove the light switch trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, SIDE SPEAKER TRIM .
-- Remove the MMI screen. Refer to Front Information Display Control Head Control Module -J523-, REMOVING AND INSTALLING, MMI BASIC .

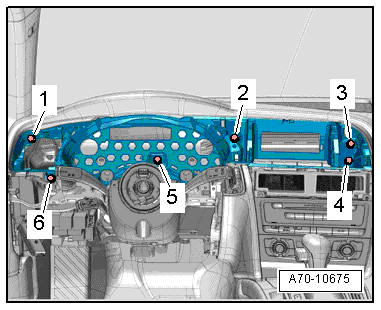

-- Remove the bolts -1 through 6- and the mounting frame.
