Access/Start Authorization Switch Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

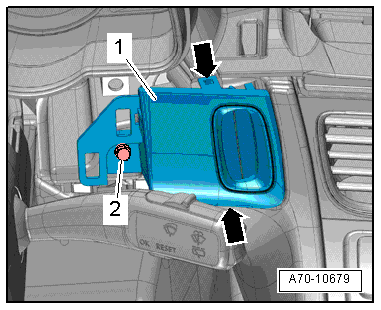

Fig 1: Identifying Panel (1) And Screw (2)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the MMI screen cover:

-- Unclip the instrument cluster gap cover from the instrument panel. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Remove the bolt -2- for the trim -1-.

-- Insert the Ignition Lock Pliers VAS6339 through the trim covers.

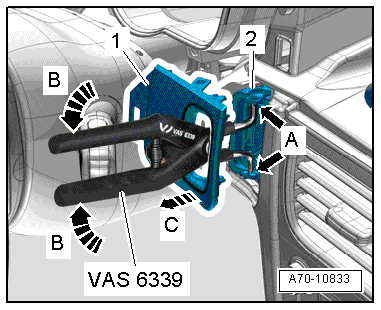

Fig 2: Removing Access/Start Authorization Switch Trim Using Ignition Lock Pliers VAS6339

Courtesy of AUDI OF AMERICA, LLC

-- Position the tips of the Ignition Lock Pliers VAS6339 on both holes -A arrows- on the Access/Start Authorization Switch -E415- -2-.

-- Press the Ignition Lock Pliers VAS6339 together -B arrows- to spread the tips of the pliers and release the trim retaining tabs.

-- Hold the Ignition Lock Pliers VAS6339 pressed with one hand and remove the trim -1- with the other hand -arrow C-.

NOTE:

Only use the Ignition Lock Pliers VAS6339. Remove the trim by hand.
