Instrument Panel Central Tube, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

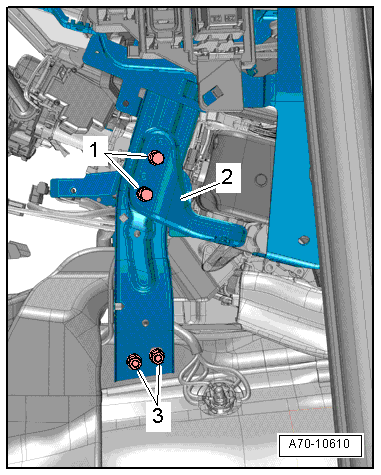

Fig 1: Removing Instrument Panel Central Tube

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the steering column. Refer to STEERING COLUMN .

-- Disengage the left instrument panel central tube air ducts. Refer to HEATER AND A/C UNIT AIR INTAKE HOUSING, REMOVING AND INSTALLING .

-- Remove the instrument panel vent air duct. Refer to INSTRUMENT PANEL VENTS AND REAR VENTS, REMOVING AND INSTALLING .

-- Remove the left Fuse Panel C -SC- and the right Fuse Panel D -SD- from the instrument panel central tube. Refer to RELAY CARRIERS, FUSE PANELS AND E-BOXES .

-- Remove the Data Bus on Board Diagnostic Interface -J533- and set aside. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .

-- Remove the bolts -1- on the left and right of the central tube support and remove the bracket -2-.

-- Remove the left and right bolts -3- for the central tube support.

-- Remove the A/C unit bolt -1- on the left and right of the central tube support.

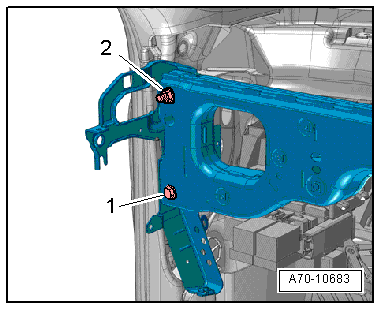

Fig 2: Removing A/C Unit Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the middle defroster vent air duct. Refer to PLUGS, INSTALLING IN CENTER VENT AIR DUCT .

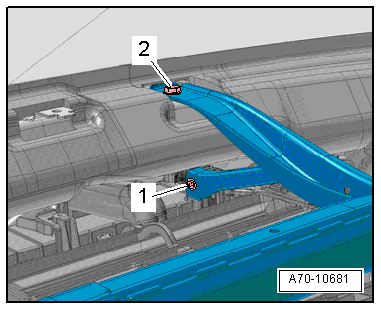

Fig 3: Removing A/C Unit Bolt -1, -- Remove Bolt -2- On Top Brace On Instrument Panel Central Tube.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the A/C unit bolt -1- on the instrument panel central tube top brace.

-- Remove the bolt -2- on the top brace on the instrument panel central tube.

-- Remove the ground wire and left ground point on the tunnel wall and free them up.

-- Disconnect the connectors on the accelerator pedal module and the brake light switch and free them up.

-- Remove the front right sill panel trim. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING, FRONT SILL PANEL .

-- Disconnect the multi-pin connector at the right connector station on the A-pillar. Refer to OVERVIEW - INSTRUMENT PANEL RELAY CARRIER/FUSE CARRIER AND A-PILLAR RELAY CARRIER/FUSE CARRIER .

-- Disconnect the electrical connector on the fresh air blower and free up the wires.

-- Remove the air intake chamber bracket bolts -1- on the instrument panel central tube.

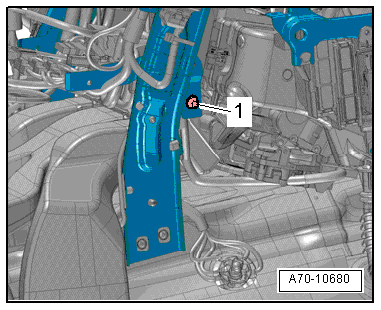

Fig 4: Removing Air Intake Chamber Bracket Bolts -1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2-.

-- Remove the bolt -1- and nut -2-.

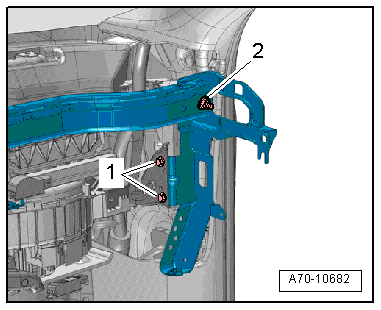

Fig 5: Removing Bolt -1- And Nut -2

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the 2 nuts -2- and -3- on stud bolt on the driver side A-pillar -1- and remove the stud bolt.

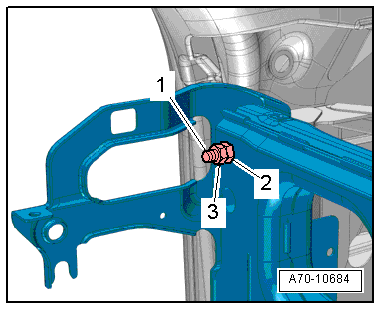

Fig 6: Locating 2 Nuts -2- And -3- On Stud Bolt On Driver Side A-Pillar -1- And Remove Stud Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Two technicians are needed to remove instrument panel central tube.

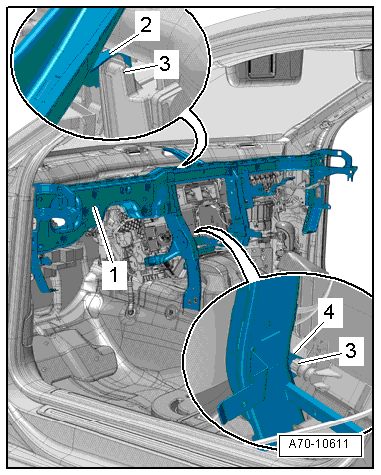

-- Carefully pull the instrument panel central tube -1- up at the driver side while disengaging it from the A/C unit -3- and the upper -2- and lower -4- stop brackets.

Fig 7: Carefully Pull Instrument Panel Central Tube -1- Up At Driver Side While Disengaging It From A/C Unit -3- & Upper -2- & Lower -4- Stop Brackets

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel central tube from the threaded pin on the A-pillar on the front passenger side.

-- Carefully tilt the top side of the instrument panel central tube back while pulling it up.

-- Remove the instrument panel central tube from the vehicle interior.
