Window Frame Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Lower the door window.
-- Remove the treble speaker trim. Refer to TREBLE SPEAKER TRIM, REMOVING AND INSTALLING .
-- Equipment versions with treble speaker: Remove the treble speaker. Refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14 - / -R16 -, REMOVING AND INSTALLING .
-- Equipment versions with lane change assistance: Remove the Lane Change Assistance Button -E530-. Refer to LANE CHANGE ASSISTANCE .

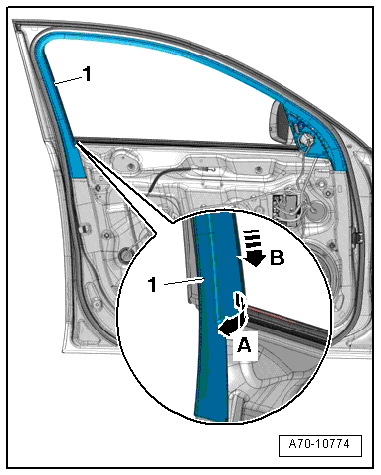

-- Pry off the window frame trim panel -1- using the Trim Removal Wedge 3409 starting at the bottom, then carefully working along the entire length of the window frame seal -arrow A-.
-- Remove the window frame trim downward from the window frame -arrow B- at the same time.
