Trim Molding, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

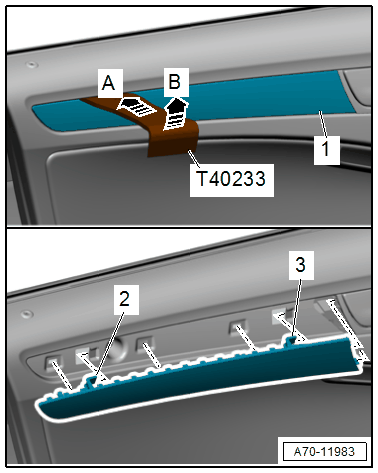

-- Carefully insert the Trim Removal Wedge T40233 from behind the trim panel between the door trim and the trim panel -arrow A-.
-- Carefully pry out the trim -1- along the door trim seam -arrow B- using the Removal Wedge T40233 and remove it.
-- Disengage and remove the inner trim hooks -2 and 3- from the opening of the door trim panel.
