Midrange Speaker Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

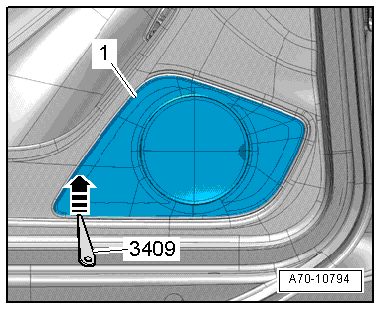

Fig 1: Removing Midrange Speaker Trim
GWWA70-10794Courtesy of AUDI OF AMERICA, LLC

-- Pry out the speaker trim -1- along the door trim panel seam -arrow- using the Trim Removal Wedge 3409 and remove it.
