Front Pull Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

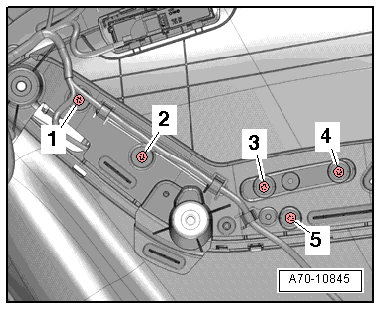

Fig 1: Removing Front Pull Handle From Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the front armrest. Refer to FRONT ARMREST, REMOVING AND INSTALLING .

-- Remove the window regulator control head. Refer to Power Window Control Head In Driver Door -E512-, REMOVING AND INSTALLING .

-- Remove the mirror adjusting switch. Refer to Power Window Control Head In Driver Door -E512-, REMOVING AND INSTALLING .

-- Remove the bolts -1 through 5- on the rear of the door trim panel.

-- Carefully remove the pull handle -1- with the switch mount from the door trim.

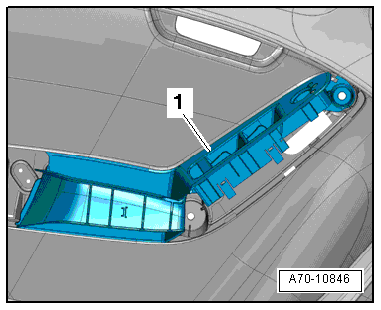

Fig 2: Identifying Front Door Panel Pull Handle

Courtesy of AUDI OF AMERICA, LLC
