Button Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Disconnect the connector -3- to the Rear Lid Remote Unlock Switch -E188-.

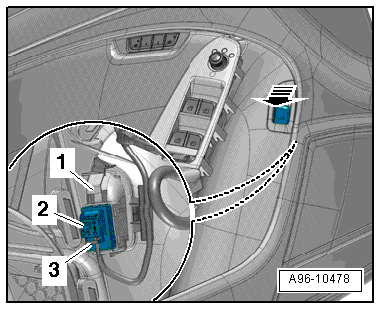

-- Release clips -1- and push trim -2- together with the Rear Lid Remote Unlock Switch -E188- out of the door trim panel -arrow-.
-- Remove the Rear Lid Remote Unlock Switch -E188- from the trim. Refer to Rear Lid Remote Unlock Switch -E188-, REMOVING AND INSTALLING .
