Rear Wheel Housing Liner, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

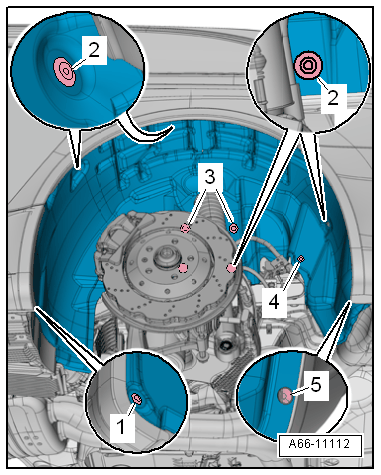

Fig 1: Removing/Installing Rear Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

The rear wheel is removed.

-- Remove the nuts -3- and bolts -5-.

-- Remove the expanding clips -1, 4-.

-- Remove the clips -2- from the wheel housing liner.

-- To remove the clips -3-, unlock the release lever -2- with needle nose pliers in direction of -arrow A- and push it off the pin -1- in direction of -arrow B-.

-- Remove the wheel housing liner.

Fig 2: Identifying Clips -3-, Release Lever -2- And Pin -1-

Courtesy of AUDI OF AMERICA, LLC
