Overview - Rear Wheel Housing Liner, Except AUDI RS 4

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Locking Pliers VAS6199

-- Use to loosen the clips on the wheel housing liner.

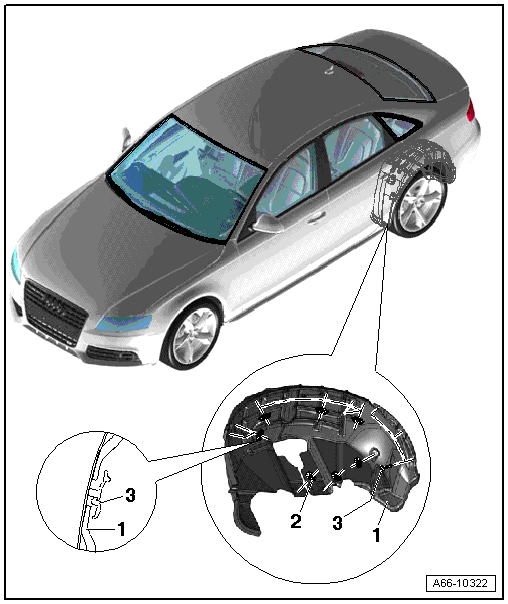

Fig 1: Identifying Rear Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

Rear Wheel Housing Liner
- Removing:
  -- The rear wheel is removed.

  -- Remove the outer bolts.

  -- Remove the clips from the retaining pins.

  -- Remove wheel housing liner downward.
- Install in reverse order of removal.
Bolts
- 2 Nm
Clip
- Quantity: 9
  NOTE:
  After removing the wheel housing liner, the clips must be replaced.

Release the Clip

-- To remove the clips -3-, unlock the release lever -2- with needle nose pliers in direction of -arrow A- and push it off the pin -1- in direction of -arrow B-.

Fig 2: Identifying Clips -3-, Release Lever -2- And Pin -1-

Courtesy of AUDI OF AMERICA, LLC

-- The Locking Pliers VAS6199 may also be alternatively used to release the clips.
