Overview - Rear Wheel Housing Liner, AUDI RS 4

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

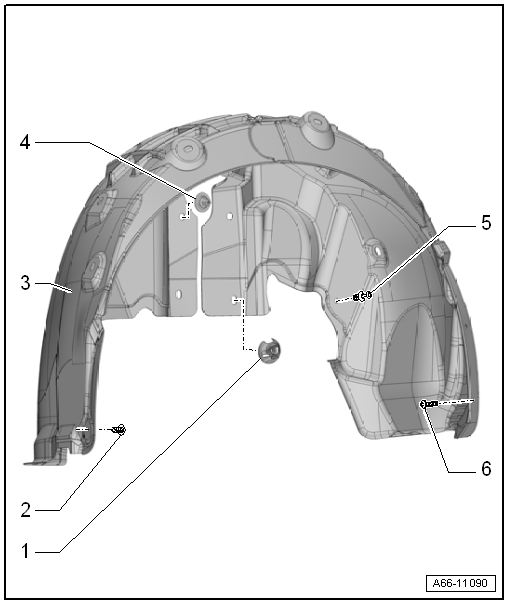

Fig 1: Overview Of Rear Wheel Housing Liner (Audi RS 4)
GWWA66-11090Courtesy of AUDI OF AMERICA, LLC
  1. Retaining Clip
    • Quantity: 7
  2. Expanding Clip
  3. Rear Wheel Housing Liner
  4. Nut
    • 2 Nm
    • Quantity: 2
  5. Expanding Clip
    • There are different versions.
  6. Bolt
    • 1.7 Nm
    • Quantity: 3
